How to Build a Footwear Tech Pack for OEM Production

In OEM shoe production, the main trade-off is simple: a lighter, faster tech pack reduces development time at the start, but it usually increases sample revisions, material mistakes and claim risk later. A detailed footwear tech pack takes more effort before sampling, yet it shortens the factory’s decision cycle, improves quotation accuracy and reduces hidden cost per pair during bulk production.

For sourcing managers, brand owners and importers buying from China, this is not a design exercise. It is a manufacturing control document. A weak pack leaves too much interpretation to the sample room, pattern engineer, outsole mold supplier and purchasing team. A strong pack aligns size grading, material substitutions, test standards, labeling, packaging and tolerance limits before the first confirmation sample is cut.

The practical question is not whether to prepare a tech pack, but how complete it should be for your product type, MOQ and target FOB. A casual vulcanized canvas shoe at 1,200 pairs can tolerate a simpler file than a cemented running shoe with molded strobel insole, dual-density phylon and EN ISO slip requirements. The right structure is the one that gives the factory enough instruction to quote, sample and produce without guesswork.

In footwear OEM, the tech pack is not artwork for the factory; it is the instruction set that decides cost, fit, lead time and claim risk.

What a footwear tech pack controls in OEM shoe production

A footwear tech pack is the working specification set used by development, costing, sourcing, pattern making, material purchasing, sample room and production QC. In footwear, it does more than show appearance. It defines how upper, lining, reinforcement, bottom unit, packaging and compliance requirements interact in actual manufacturing.

Compared with apparel, a shoe tech pack has more engineering dependencies. If the toe puff thickness changes from 1.2 mm to 1.5 mm, fit volume changes. If mesh GSM drops from 260 to 220, vamp collapse and tongue wrinkle may appear. If phylon density shifts from 0.22 g/cm3 to 0.18 g/cm3, compression set, rebound and wear profile will change. This is why a usable footwear specification sheet must connect design intent to measurable inputs.

At minimum, the document package should let a factory answer five questions without repeated back-and-forth: what to make, which materials to buy, how to construct it, what quality level to hold and how to pack and ship it. If those five are not clear, the shoe development process becomes slower and more expensive than it needs to be.

• Commercial scope: target FOB, MOQ per color, size range, target market and incoterm basis
• Product scope: category, construction method, intended use and key wear performance targets
• Technical scope: dimensions, tolerances, materials, density, hardness, bonding method and grading
• Compliance scope: REACH risk items, CPSIA labeling if relevant, EN ISO or ASTM test references
• Operational scope: sample stages, approval points, lead-time by milestone and packaging detail

Simple shoe tech pack template vs full factory-ready footwear specification sheet

The first comparison is depth. Many buyers start with a visual shoe tech pack template: side views, outsole reference and basic material callouts. This is enough to get a rough quote and an initial sample, especially for proven constructions such as cupsole court shoes or standard EVA slippers. The advantage is speed. The weakness is interpretation risk.

A full factory-ready footwear specification sheet includes upper pattern map, material code, thickness, color standard, stitch type, stitch SPI, foam density, board spec, outsole hardness, logo application method, test method and carton packing instruction. It takes longer to build, but it reduces the number of assumptions a factory must make. On average, this saves one to two sample rounds on medium-complexity styles.

In China OEM practice, a simple pack often works for repeat styles with an existing last and outsole mold. For new outsole tooling, new fit block or mixed-material fashion uppers, the fuller version is safer. The cost difference in preparation is small compared with the cost of wrong molds, delayed lab dips or rework on 3,000 pairs.

When a simple pack is enough

Use a lighter template when the style is low complexity, the factory has made similar product repeatedly and your risk tolerance is higher. Examples include one-piece injected EVA clogs, flip-flops, house slippers and basic vulcanized canvas with stock foxing and stock last.

In these cases, MOQ is often 600 to 1,200 pairs per color, first sample lead time may be 7 to 12 days and you can work with a narrower set of specs. However, even a simple pack should still define material thickness, logo size, outsole color code and carton ratio.

When a full pack is necessary

Use the full version for performance footwear, children’s shoes, safety-sensitive categories and any style requiring new molds, special fit control or high claim exposure. Running, hiking, work shoes and outdoor sandals need more exact definitions because bottom components, adhesives and wear tests are less forgiving.

In these cases, development lead time is usually 30 to 60 days before production confirmation, mold cost may run from US$2,500 to US$8,000 depending on size set and complexity, and the quality cost of vague documentation is much higher than the drafting time.

Comparison of tech pack options for OEM shoe production

Comparing the critical sections of a footwear tech pack

Not all pages in a tech pack carry equal weight. Some affect appearance only; others affect fit, cost and claim risk directly. Buyers often spend too much time on color renderings and too little time on materials, grading and tolerance control. Below are the sections that matter most in custom shoe manufacturing.

1. 01Product overview page: style name, article number, construction, target FOB, size range, gender grade and market destination.
2. 02Exploded material map: every upper, lining and bottom component with material code, supplier reference, thickness, backing and finish.
3. 03Dimension and grading sheet: last measurements, topline opening, ball girth, footbed length, outsole length and grading increment by size.
4. 04Construction sheet: seam type, lasting allowance, strobel or board-lasted method, adhesive system, pressing temperature and curing condition.
5. 05Testing and compliance page: abrasion, flexing, peel, color fastness, hydrolysis where applicable, slip resistance and restricted substances.
6. 06Packaging page: tissue, stuffing, silica gel if needed, box board grade, carton size, assortment ratio and shipping marks.

Materials page vs visual sketch page

If one page must be perfect, it is the materials page. A sketch tells the sample room what the shoe should look like. The materials page tells purchasing what to buy and tells production what can and cannot be substituted. A visual note saying 'microfiber' is not enough. It should state, for example, microfiber PU upper 1.4 to 1.6 mm, water-based finish, color per Pantone reference, backing non-woven 120 GSM, tensile minimum as agreed.

The same applies to foam and bottom materials. Instead of writing 'EVA midsole', specify compression molded EVA, density 0.20 to 0.24 g/cm3, Shore C 45 to 50, color masterbatch code and weight target in sample size. That level of detail allows accurate costing and keeps sample and bulk closer.

Dimension sheet vs graded size chart

A single sample size measurement page is not enough for bulk production. The factory also needs grading rules. For example, outsole length may grade 6.67 mm per full size while ball girth and topline scale differently depending on size segment. Without this, confirmation sample fit may be acceptable in size 42 but unstable in size 39 or 45.

For children’s footwear and narrow-to-wide programs, grading control is especially important. It affects comfort, return rate and mold split decisions. If your order spans EU 28 to 39, ask for at least one wear-fit check in the lower and upper size block, not only the salesman sample size.

How detail level changes MOQ, lead time and cost per pair

The second major comparison is commercial impact. Buyers sometimes assume a detailed pack increases cost. On paper, yes, it adds preparation time. On the factory floor, it often lowers total development cost because fewer decisions are reopened during sampling and pre-production.

For a basic cemented casual sneaker using stock outsole, a weak pack may still reach production, but usually with 2 to 4 sample rounds over 25 to 40 days. A stronger pack can reduce this to 1 to 3 rounds and compress decision time by 7 to 15 days. On styles with seasonal launch pressure, that difference matters more than the drafting effort.

Costing accuracy also improves. A quote based on vague upper material notes can miss US$0.30 to US$1.20 per pair depending on fabric GSM, reinforcement spec, eyelet count, sockliner build and outsole compound. This is why experienced suppliers push buyers to lock the specification sheet before final price approval.

• Low-complexity slipper or sandal: MOQ 600 to 1,000 pairs/color; sample lead time 7 to 10 days; full pack optional but still useful
• Casual cemented sneaker with stock bottom: MOQ 1,200 to 2,000 pairs/style; sample lead time 10 to 18 days; strong material page recommended
• New molded outsole sneaker: MOQ 2,000 to 3,000 pairs/style; outsole mold lead time 18 to 30 days; full pack strongly recommended
• Performance or outdoor shoe: MOQ 2,400 to 5,000 pairs/style; development 45 to 75 days; full pack required to manage testing and construction

Testing and compliance: compare minimum claim control vs specification-driven control

A common gap in OEM shoe production is treating testing as a post-production issue instead of a design input. Minimum claim control means the buyer asks for general 'good quality' and checks only finished appearance. Specification-driven control sets test targets in the tech pack before materials are ordered.

For fashion casual shoes, the minimum set may include outsole abrasion, upper-lining color fastness to rubbing, bond strength and carton drop test. For athletic or outdoor product, flexing, peel strength, sole adhesion after aging, slip resistance and hydrolysis risk on PU components become more important. If your market references EN ISO or ASTM methods, state them in the document rather than assuming the factory standard matches your importer requirement.

This is particularly important for private-label business. If one shipment passes your inline inspection but fails retailer testing later, the problem usually goes back to an unlisted threshold, not only bad workmanship. A tech pack with test methods and pass criteria gives the factory and third-party lab the same target.

Examples of footwear-specific test items to list

Outsole abrasion can be set by material and category. Bonded constructions should state peel or adhesion targets by interface such as upper to foxing, upper to midsole or sole to upper. Textile uppers may need seam slippage and crocking checks. PU-coated materials may need hydrolysis review depending on storage and market climate.

For slip resistance, identify whether your customer expects EN ISO style references, SATRA-style test practice or internal retailer protocol. The point is not the label itself; the point is that outsole pattern, rubber hardness and compound all change when slip becomes a defined target.

How to build the document set step by step in the shoe development process

The best approach is staged completion, not waiting for one perfect file at the end. During the shoe development process, each version of the pack should become more production-ready. Early versions support quotation and first sample. Later versions lock purchasing and PP approval.

Version 1 should include sketches, outsole reference, size range, construction type, target FOB and benchmark material direction. Version 2 should add exact material specs, dimensions and logo artwork. Version 3, usually before wear test or salesman sample approval, should add packaging, grading confirmation and compliance language. The final PP version should carry approved swatches, approved color standard, date, revision number and signer.

Revision control matters. If the upper mesh changes from 280 GSM to 240 GSM after sample approval and only email is updated, the cutting room may still use the old BOM. Every revision should be dated and issued as the latest working document. On a busy factory floor, undocumented changes are one of the main reasons sample and bulk diverge.

1. 01Start with article profile: category, construction, target consumer, FOB target and MOQ assumption.
2. 02Create the upper and bottom component map with material callouts and placement notes.
3. 03Add measurement sheet for sample size plus grading rule by full and half size where applicable.
4. 04Define bottom specs: outsole compound, hardness, density, mold status, logo and color break points.
5. 05Add workmanship standards: stitch type, SPI, edge paint, cement margin, lasting tolerance and glue cleaning limits.
6. 06Insert test requirements, labeling language, care labels, carton marks and packaging assortment.
7. 07Lock revision number and issue PP-approved pack to merchandising, production and QC together.

Common mistakes in custom shoe manufacturing tech packs

Most errors are not dramatic. They are small omissions that multiply across cutting, stitching, stock fitting and assembly. The first is overusing generic terms. 'Rubber outsole', 'foam insole' and 'mesh upper' are not enough for costing or purchasing. The second is missing tolerances. A logo offset by 2 mm may be acceptable, but a foxing height variance of 2 mm may not be. If tolerance is not written, QC and production will argue at shipment stage.

Another frequent mistake is forgetting inside components. Counter, toe puff, strobel cloth, insole board, heel wedge and filler foam often determine fit and wear, yet many buyer packs mention only visible materials. This leads to uncontrolled substitutions, especially on low FOB programs.

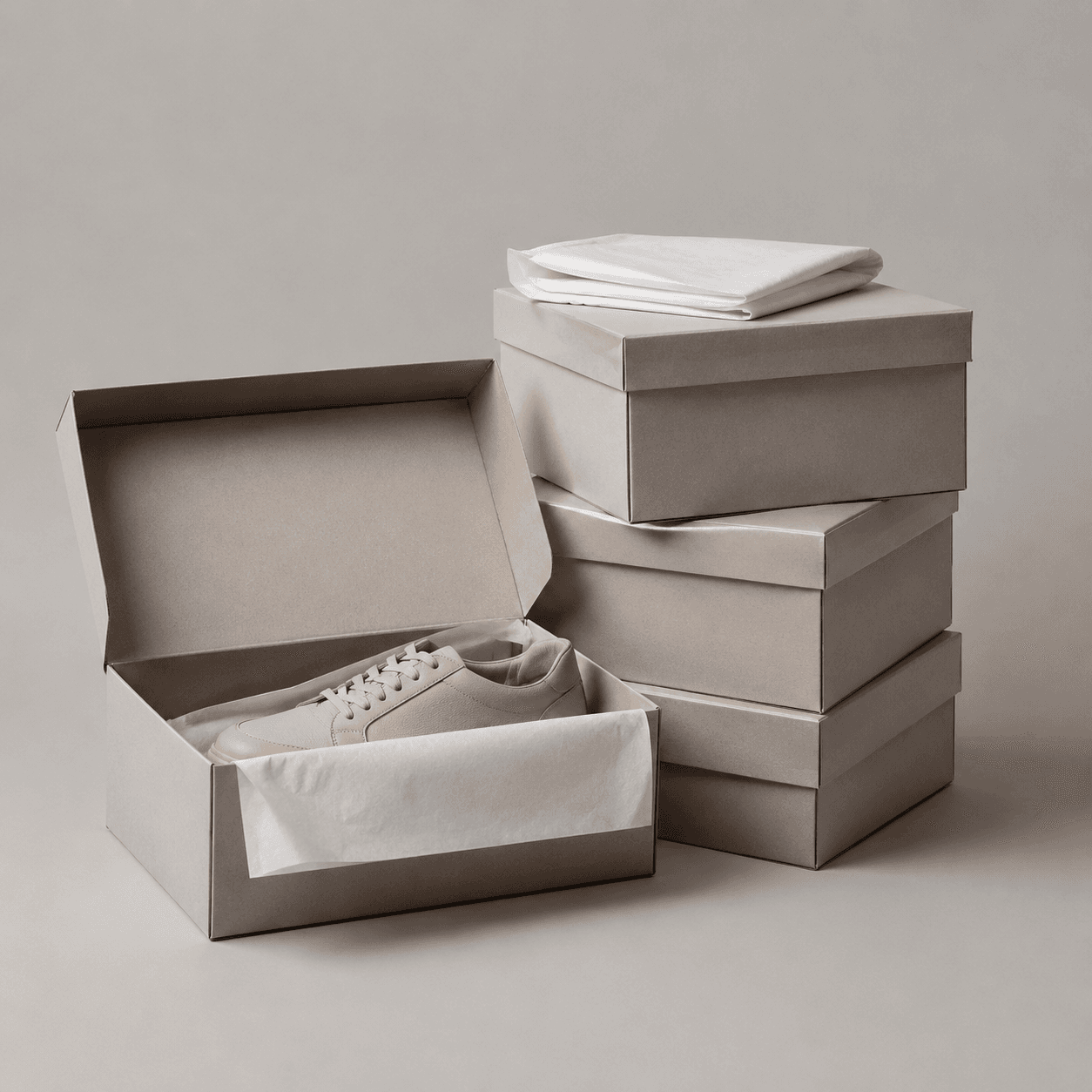

The last mistake is separating packaging from the technical file. Shoe box dimensions, tissue requirement, spare lace bag, hanger, size sticker and carton assortment all affect final weight, CBM and drop-test survival. For bulk importers, that is not a minor detail. It affects freight cost and retailer acceptance.

• Using appearance descriptions without measurable specs
• No graded size rules, only one sample size
• Missing tolerance ranges for dimensions and logo placement
• No approval history or revision control
• No pass/fail criteria for testing
• No packaging specification tied to the style

Verdict: which type of footwear tech pack is right for bulk buying from China

For bulk buying, the best choice is usually not the shortest shoe tech pack template and not the most complicated engineering dossier possible. The right level is a supplier-ready pack that matches style complexity, claim risk and tooling investment. If the product uses stock components and low-complexity construction, a lean pack with complete material and packaging data may be enough. If the product involves new molds, performance expectations or multiple upper materials, use a full factory-ready footwear specification sheet from the start.

In practical OEM terms, every missing line in the pack becomes a decision made by someone else: merchandiser, sample technician, purchasing clerk or line supervisor. Sometimes that decision is acceptable. Sometimes it changes fit, cost, lead time or compliance outcome. A detailed footwear tech pack does not remove all development risk, but it moves control back to the buyer and makes factory execution measurable.

The clearest verdict is this: if you want stable pricing, fewer sample rounds, lower claim exposure and smoother custom shoe manufacturing in China, build the tech pack as a production document, not a design mood board.
