Waterproof Shoe Manufacturing: Membranes, Sealing and Testing

In waterproof shoe manufacturing, the main trade-off is straightforward: higher water-entry protection requires more process control, more components, and more failure points to manage. A factory can make a shoe look waterproof with coated uppers and a membrane claim, but unless the bootie, seam sealing, tongue construction, and bottom assembly work together, the finished pair will leak in wear even if the raw materials pass lab tests.

For sourcing managers, brand owners, and importers buying from China, the cost gap between waterproof and water resistant shoes is not just membrane cost. It includes seam tape application, slower line speed, extra inline checks, higher rejection risk at lasting and bottom bonding, and more finished-shoe testing. That is why two visually similar outdoor shoes can differ by $2.00 to $5.00 per pair FOB and by 15 to 30 days in lead time.

The practical comparison is not membrane brand versus membrane brand. It is full waterproof membrane footwear versus simpler water resistant shoes, then within waterproof programs, which membrane, which sealing method, which upper package, and which test protocol give the best balance of claim strength, comfort, MOQ, and defect risk. For bulk buying, that is the level where margins are protected.

In footwear, waterproof performance comes from controlled construction, not from adding a membrane alone.

The trade-off: full waterproof construction versus water resistant construction

The first decision is whether the end use truly requires a waterproof claim. In supplier terms, waterproof means the finished shoe resists water penetration under a specified method, normally static water testing, dynamic flex-in-water testing, or both. Water resistant means the upper materials slow wetting and seepage, but the shoe is not built to block water entry through tongue openings, stitch holes, strobel seams, or the outsole junction during prolonged exposure.

A true waterproof shoe usually uses an internal bootie made from a membrane laminate with a lining backer in roughly 100 to 140 GSM, plus seam tape on vulnerable stitch lines, a gusseted tongue, and a bottom construction that does not compromise the barrier. Water resistant shoes usually rely on waxed leather, PU-coated textile, synthetic nubuck, or DWR-treated mesh. They may handle splash and short rain exposure well, but they are not suitable for repeated flexing in wet ground or standing water.

From a China sourcing perspective, the pricing difference is meaningful. A water resistant outdoor low-cut using cemented construction and an existing TPR or rubber outsole commonly sits around $11.50 to $15.50 FOB at 1,200 to 1,500 pairs per color. Add a standard PU membrane bootie and seam sealing, and the shoe usually rises by $1.80 to $3.20 per pair. Move to an ePTFE-based package and the increase is often $3.20 to $5.00 per pair, sometimes more if the membrane is nominated and the seam tape is brand-specific. Lead time typically moves from 45 to 60 days for water resistant shoes to 60 to 90 days for waterproof footwear.

• Waterproof means finished-shoe performance, not only treated materials
• Water resistant suits light rain and brief splash, not prolonged wet use
• Typical waterproof uplift: +$1.80 to +$5.00 per pair FOB
• Stable waterproof production usually starts at 1,200-1,500 pairs per color

Membrane comparison: ePTFE, hydrophilic PU, and low-cost film packages

Membrane selection affects three things at once: water-entry resistance, comfort, and production stability. ePTFE laminates usually offer the strongest premium positioning because they combine durable waterproofness with high moisture vapor transmission. The trade-off is sourcing rigidity. In many programs, the buyer must use approved converters or nominated laminate sources, which reduces factory flexibility and can push lead time to 75 to 100 days after all approvals.

Hydrophilic PU membranes are the most common option for private-label outdoor, work, and uniform shoes made in China. They are easier to source locally, easier to replace if one converter has delays, and generally the best value when the target retail is mid-market. A typical laminate weight for a commercially stable PU membrane package is around 115 to 160 GSM, depending on the backing knit, abrasion target, and whether the shoe is a low-cut hiker, mid boot, or safety style.

Below that level are lower-cost film packages that often look acceptable on paper but create field failures. The usual problem is not initial hydrostatic resistance. It is cracking or bond failure after lasting pressure and forepart flexing. When the film is too brittle, or the laminate bond is weak, leakage often appears first at the ball flex zone or around the toe bend after wear simulation. This is where price-driven developments often save $0.40 to $0.80 per pair in materials and then lose far more in claims.

Commercial comparison between ePTFE and PU membrane systems

ePTFE is usually justified when the brand needs a premium outdoor claim, higher-end distribution support, or a licensed membrane story. In factory costing, it commonly adds $1.20 to $2.00 per pair above a standard PU membrane package. MOQ pressure is also higher because some converters require minimum laminate runs or fixed width purchases, which does not work well for fragmented orders across many colors.

Hydrophilic PU is the more practical option for most importers. Many Chinese factories have 2 to 4 qualified sources for PU membrane laminates, so sample development is faster and bulk replacement risk is lower. For orders in the 1,500 to 5,000 pair range, PU membranes usually give the best balance between waterproof performance, sourcing flexibility, and margin control.

Breathability depends on the full package, not the membrane data sheet

A membrane with strong lab breathability numbers can still produce a hot shoe if the rest of the package is too closed. In waterproof footwear, collar and tongue foams are commonly specified around 45 to 60 kg/m3 to keep shape after repeated wetting and compression. Lining backers in the 100 to 140 GSM range are common because they stabilize the bootie and help manage abrasion from socks. If the foam is too soft or too open, it may feel comfortable in the first fitting sample but collapse after wet wear; if it is too dense, it reduces comfort and drying speed.

Comparison of waterproof construction options for bulk footwear sourcing

Sealing comparison: full bootie, seam tape, gusseting, and bottom isolation

Most leakage in waterproof footwear happens at conversion points, not in the membrane face itself. The common failure zones are quarter stitch lines, eye-stay reinforcement seams, tongue attachment, collar back seam, strobel seam, and lasting-margin damage. In production terms, waterproof shoe manufacturing is a sealing discipline. If the pattern and assembly path are wrong, a good membrane cannot rescue the finished shoe.

For hiking shoes, tactical boots, and uniform footwear, the most dependable construction is a full membrane bootie with seam tape over key stitch lines. Tape widths are commonly 18 mm, 20 mm, and 22 mm. Narrower tape helps on curved seams, but if the seam allowance is inconsistent, coverage becomes unreliable. Operators must control heat, pressure, and dwell time carefully. Excess heat can distort the membrane or shrink the backing knit; insufficient heat leads to tape lift after flex testing or wear.

Tongue construction separates many working designs from failing ones. A true gusset should rise high enough to block water entry near the collar opening and be stitched so that needle holes do not create a direct path into the foot cavity. In lower-cost developments, the gusset often ends too low, or decorative stitch lines cross waterproof zones and reduce seam-tape adhesion. Those leaks are not always visible in sample review; they show up in flex-in-water testing or customer wear complaints.

Bottom construction also matters. Cemented construction remains the most efficient option for outdoor and casual waterproof shoes, but it requires disciplined adhesive application and lasting control so the bootie is not punctured or dragged. Direct-injected PU can improve bottom-edge sealing in industrial and safety footwear, but the mold investment is higher and style changes are less flexible. Strobel constructions need special attention because the waterproof bootie must remain independent from the stitched strobel base rather than becoming perforated by the main assembly line.

• Common tape widths: 18 mm, 20 mm, 22 mm
• Highest leak-risk areas: forepart flex, tongue gusset, strobel seam, eye-stay seam, collar back seam
• New waterproof styles often need 2-4 days of line stabilization
• First-pass yield is usually lower than standard cemented outdoor shoes

Upper package comparison: leather, microfiber, and coated textile

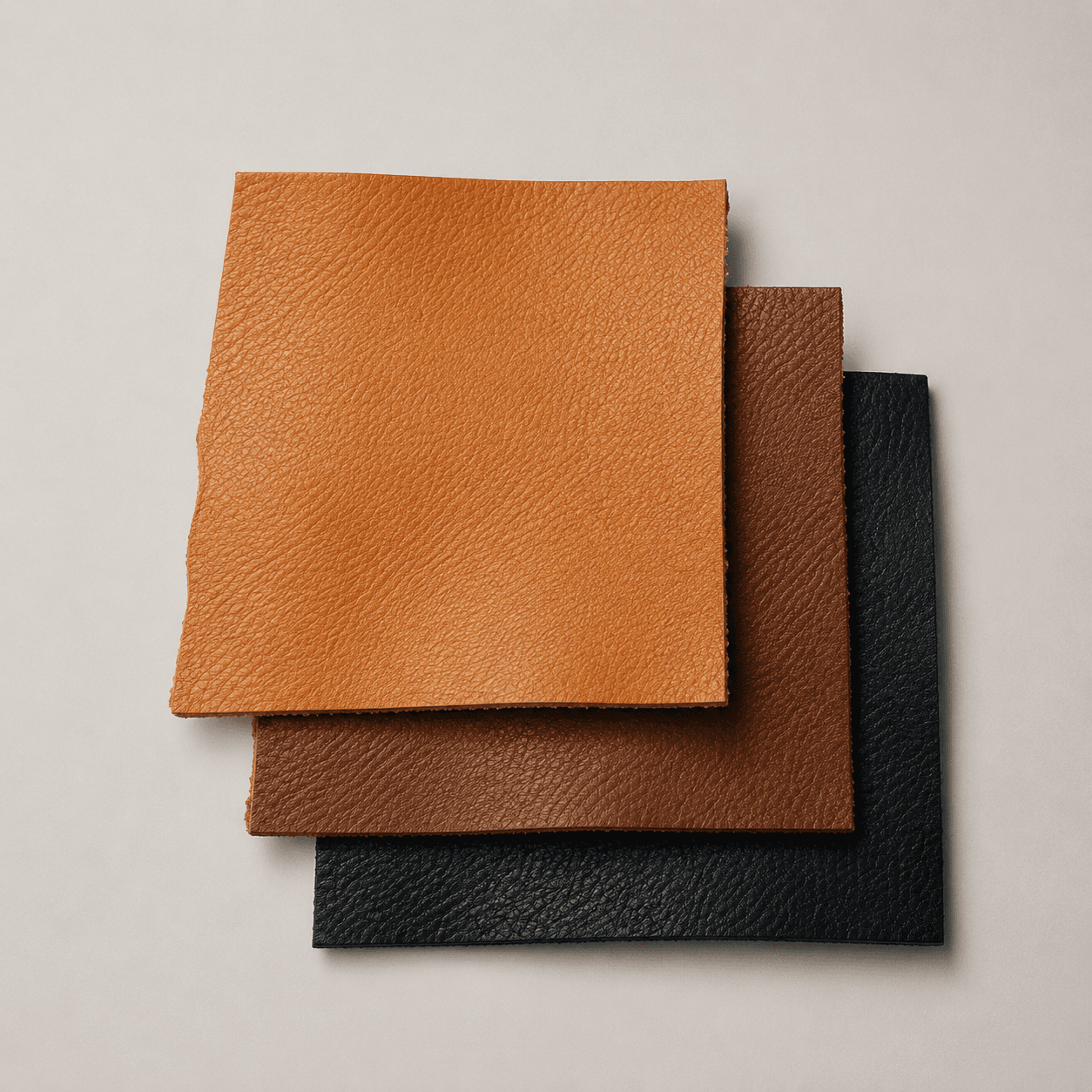

Upper choice changes durability, water pick-up, weight, and line consistency. Full-grain leather at 1.6 to 1.8 mm is common for waterproof hiking shoes, while 1.8 to 2.0 mm is more common for boots and safety categories. Leather gives structure, abrasion resistance, and strong stitch holding, but it adds cost, weight, and variation in cutting yield. After saturation from external wetting, it also dries slower than most synthetics even when the membrane prevents water entry inside the shoe.

Microfiber and synthetic nubuck are often easier to scale in bulk. Thickness, color, and elongation are more consistent than natural leather, which helps maintain fit and reduce line variation between purchase orders. A stable waterproof-friendly microfiber should resist heat during toe lasting, hold stitch definition, and avoid delamination at the flex point. Lower-grade microfiber often saves cost upfront but may crack on the surface or separate from its backing after wet-dry cycles.

Coated textile uppers are common for lighter waterproof trail shoes and many water resistant shoes. Fabrics around 600D to 900D with PU backing are typical for commercial outdoor product; 1000D to 1200D fabrics are more common in tactical and heavy-duty uniform shoes. These materials reduce weight and may lower FOB cost, but they can absorb surface water and feel cold on foot even when the internal membrane remains intact. For buyers, that is an important distinction: external saturation affects comfort perception even when the waterproof claim is still technically valid.

1. 01Leather offers durability and structure but increases weight, cost, and drying time.
2. 02Microfiber improves repeatability and cutting yield, provided backing stability is good.
3. 03Coated textiles lower weight and often cost less, but they require control of wicking and saturation behavior.

Testing comparison: lab material data versus finished-shoe proof

Testing is where quotations from different factories often become misleading. One supplier may show only membrane hydrostatic data from the laminate mill; another may test the finished shoe after lasting and bottom bonding. Those are not equivalent. For bulk purchasing, the relevant question is whether the completed shoe still resists water penetration after every stitch, fold, bond, and flex point has been introduced.

For leather uppers and leather combinations, EN ISO 20344 methods are commonly referenced for water penetration and absorption of upper materials. For safety footwear categories, EN ISO 20345 and ASTM F2413 may apply to overall footwear classification, but they do not automatically validate a waterproof claim. That claim still needs a defined footwear-level method, often a dynamic water penetration or flex-in-water procedure aligned to buyer specification or SATRA practice. Factories making occupational waterproof footwear may also use internal protocols requiring no leakage after a set flex count in shallow water.

Supplier-side control should begin before final assembly. Better factories check membrane booties by air inflation or light positive-pressure inspection before inserting them into the upper. Seam tape adhesion should be verified inline, especially on high-curvature seams and at tongue corners. For bulk, lot testing of finished shoes by size range is more reliable than one random pair per shipment. On higher-risk projects, 100% bootie air checks and finished-shoe lot tests every 500 to 800 pairs are commercially justified.

Lead time should reflect those controls. A standard non-waterproof cemented outdoor shoe can often ship in 45 to 55 days after materials are in-house. A waterproof style with custom membrane bootie, seam tape approval, and finished-shoe testing is more realistically 60 to 90 days. If the outsole is new, the membrane is nominated, or the buyer requires third-party confirmation before shipment, 75 to 100 days is a safer planning range.

• Ask for finished-shoe water test results, not membrane-roll data only
• Confirm whether the method is static immersion, dynamic flex, or internal customer protocol
• Relevant references commonly include EN ISO 20344, EN ISO 20345, ASTM F2413, and SATRA methods by category
• Custom waterproof programs often need 60-90 days; nominated-material programs may need 75-100 days

Cost, MOQ, and line efficiency by category

The right specification depends on category and price architecture. In hiking, work, tactical, and winter outdoor footwear, full waterproof construction is usually worth the added cost because the user expects reliable wet-weather performance. In these categories, a complete waterproof membrane footwear package is often the lower-risk sourcing decision even if it raises FOB by $2.00 to $5.00 per pair and reduces line throughput during startup.

In casual outdoor, school, travel, and fashion-trail product, water resistant shoes are often the stronger commercial choice. They allow more color variation, lower MOQs, faster repeat orders, and fewer assembly risks. Instead of paying for a waterproof claim the consumer may not need, the buyer can often invest the same budget into better outsole rubber, improved comfort foam, or stronger upper finishing.

MOQ shifts sharply with complexity. A water resistant style using stock-supported uppers and an existing outsole can sometimes run from 800 to 1,200 pairs total. A custom waterproof style is more commonly 1,500 to 3,000 pairs total, with 500 pairs per color as a workable floor and 1,000 pairs per color preferred by many factories for stable line balancing. If the project requires custom printed membrane, unique seam tape, or a newly developed bootie pattern, the practical MOQ may move higher.

From the supplier side, fragmented waterproof orders are usually the least efficient. Too many small color splits increase setup waste, reduce seam-tape consistency, and create more opportunities for leakage variation. Factories therefore price more competitively when buyers consolidate volume into fewer colors, reuse proven lasts and outsoles, and keep the membrane package unchanged across seasons.

• Water resistant styles can start around 800-1,200 pairs total on existing tooling
• Custom waterproof styles are commonly 1,500-3,000 pairs total
• A practical waterproof color split is 500 pairs per color, though 1,000 is better for line efficiency
• Consolidated colorways usually improve yield and reduce leakage variation

Verdict: the right waterproof level for bulk buying

If the footwear is designed for hiking, work, tactical, winter commuting, or any use involving repeated wet ground, standing water, or long rain exposure, full waterproof shoe manufacturing is the correct specification. That means a proven membrane bootie, disciplined seam sealing, a properly gusseted tongue, and finished-shoe testing by lot. It costs more and takes longer, but the claim is defensible and the return risk is materially lower when the factory controls the process well.

If the product is casual, school, travel, or light outdoor, water resistant shoes are often the better commercial decision. They reduce FOB cost, shorten lead time, lower MOQ pressure, and make multi-color programs easier to manage. The important point is claim discipline: do not label the product waterproof unless the construction and test method support that claim at finished-shoe level.

The supplier-side conclusion is simple. Use waterproof membrane footwear when the end use genuinely requires a waterproof promise and when order volume can support the added process control. Use water resistant shoes when splash protection is enough and margin discipline matters more than maximum barrier performance. The best waterproof shoes manufacturer is not the one offering the lowest membrane surcharge. It is the one aligning membrane type, seam construction, testing method, MOQ, and lead time with the actual use of the shoe.
